Huber G670 Guinier camera

The diffractomer operates in transmission mode with the sample in a thin layer on a scotch tape or in a glass capillary. The radiation is Cu Kα1 from a focusing quartz monochromator and it uses an imaging strip covering 100 degrees as detector. The diffractometer can be set up with a furnace covering room temperature to 1100 K, and a cryocooler covering 100 to 475 K.

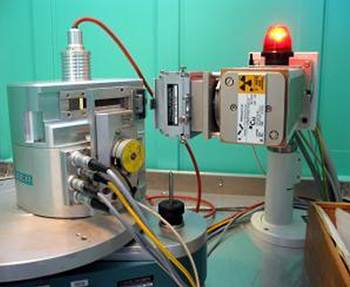

Bruker D8 Advance

The diffractometer operates in reflection (Bragg-Brentano) mode. The radiation is Cu Kα1 and Kα2 and it uses a secondary graphite monochromator and a scintilation detector. The samples are loaded in small cups or on Si single-crystal plates. The samples can be set up in an automated sample changer nine at the time.

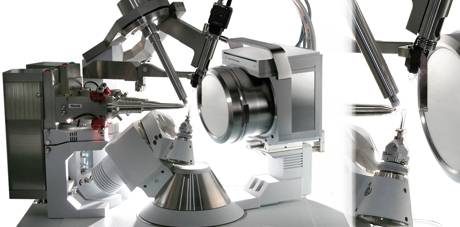

SuperNova Dual Source CCD-difractometer
SuperNova Dual Source CCD-difractometer

The diffractometer consists of a four-circle kappa-goniometer combined with an Atlas CCD-detector and dual micro-sources (Cu and Mo Kα1 and Kα2 radiation) with multi-layer optics. The diffractometer is set up with a cryocooler covering 100 to 475 K. The single-crystal samples (<0.2 mm) are mounted either on a glass tip or in a loop which are placed on a goniometer head. It was installed in February 2013 and is used for both small molecule and protein crystals.

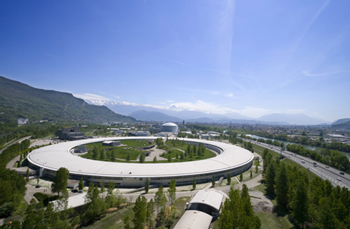

We are having beam time several times during the year where we collect data at MAX-lab in Lund or ESRF in Grenoble.
